86-inch transparent stereoscopic display cabinet, 3D digital tiger anthropomorphic holographic cabin, interactive AI human body replication machine.
Keyword: 86-inch transparent stereoscopic display cabinet, 3D digital tiger anthropomorphic holographic cabin, interactive AI human body replication machine.
- Description
- Product parameters
- Recommended similar products
-
- Commodity name: 86-inch transparent stereoscopic display cabinet, 3D digital tiger anthropomorphic holographic cabin, interactive AI human body replication machine.
- Commodity ID: WG-860G01
- 产品基本介绍: 1. Transparent screen display cabinet: An intelligent display window that allows viewing exhibits through the screen and enables information interaction. 2. New type of transparent LCD display cabinet - Customizable size and shape. 3. Simple operation: Supports Android and Windows systems, equipped with a news release system, supports WIFI connection and remote control. 4. Virtual and real synchronization: Physical objects and multimedia information can be displayed simultaneously, enriching the visual experience and allowing customers to learn more about the exhibits. 5. 3D stereoscopic imaging: Viewers can enter a wonderful world of virtual and real, real and illusory without wearing 3D glasses. 6. Suitable for displaying high-end products such as cosmetics, jewelry, watches, museum artifacts, handbags, clothing, and bank precious metals.
86inchTransparent Display ScreenSpecification
Product Model:WG-860G01

I. Product Introduction:WG-860G01 Transparentscreen adoptsLG IPSscreen, supportsUltraHigh Definition3840*2160 resolution,The picture is delicate and high-resolution, the video playback is smooth, it contains audio and video processing functions, and can output high-quality picture and sound quality. High brightness, ultra-wide viewing angle, high color gamut, high color depth and fast response time displayeffect。Industrial design, advanced technology, energy saving and environmental protection.
II. Functional Features:- AdoptsIPS hardscreen technology, large viewing angle, fast response speed, high color reproduction;
- The display screen adoptsa-Si TFT-LCD,The picture display is more perfect;
- 3840*2160Ultra-high resolution, more delicate image quality;
- Panel protection adopts5mmultra-white crystal tempered glass hardness≥7H;
- AdoptsIPS, constant black display, perspective;
- Viewing angle can reach89/89/89/89(Min.)(CR≥10),close to horizontal;
- The whole machine is made of all-metal structure, anti-radiation, anti-magnetic field, and anti-strong electrical interference;
- Industrial design, high reliability, high stability;
III. Specifications:
Product Reference Drawing/ Product Reference Drawing

Size/size:86”inch
Model'/model: WG-860G01'Panel Parameters
PanelPanel size/Panel size
86”inch
Display Area/Display Area
1895(H)X1066(V)mm
Display Mode/Display Mode
'9:16'
LCD Type/LCD Type
LCD panel/LCD panel
Max Resolution/Max Resolution
2160*3840
Display Color/Display Color
16.7M
Brightness/Bnightness
White300/150 cd / m2(center 1 point, typical value)
Contrast Ratio/Contrast
≥1200:1
Viewing Angle/Viewing Angle
89/89/89/89(Min.)(CR≥10)
Response Time/Response Time
8ms
Refresh Rate/Field Frequency
60Hz
Color System/Color System
PAL/NTSC
Menu Language/OSD Language
Chinese,English/Chinese, English
Touch Parameters/Touch parameters
Touch Style/Touch Style
Infrared touch/Infrared touch
Touch Points/Touch Style
10 points/10 touch
Computer Configuration/Computer Configuration
System/System
win
CPU/CPU
i5
Memory/RAM
8G
Hard Disk/HD
240G
Playback format/Playback format
Video formats/Support video formats
Support/support:wmv avi flv rm mvd mpeg ts mp4
Audio/Frequency
MP3 WMA
Image/Picture
Support/BMP,JPEG,PNG,GIF
Interface/Interface
HDMI
1
Network port/Eternet
RJ45 10M/100M
USB
2
Audio System/Audio Sytstem
8Ω 10W*2
Power Supply/Power
Power Supply/Power
AC100V~240V,50/60HZ
Maximum Power/Maximum Power
<800W
Standby Power/standby power
<1W
Operating Environment/work environment
Operating Temperature°C/Operating Temperature
0°C-50°C
Appearance/Figure
Frame Material/Frame material
Sheet Metal/Hardware

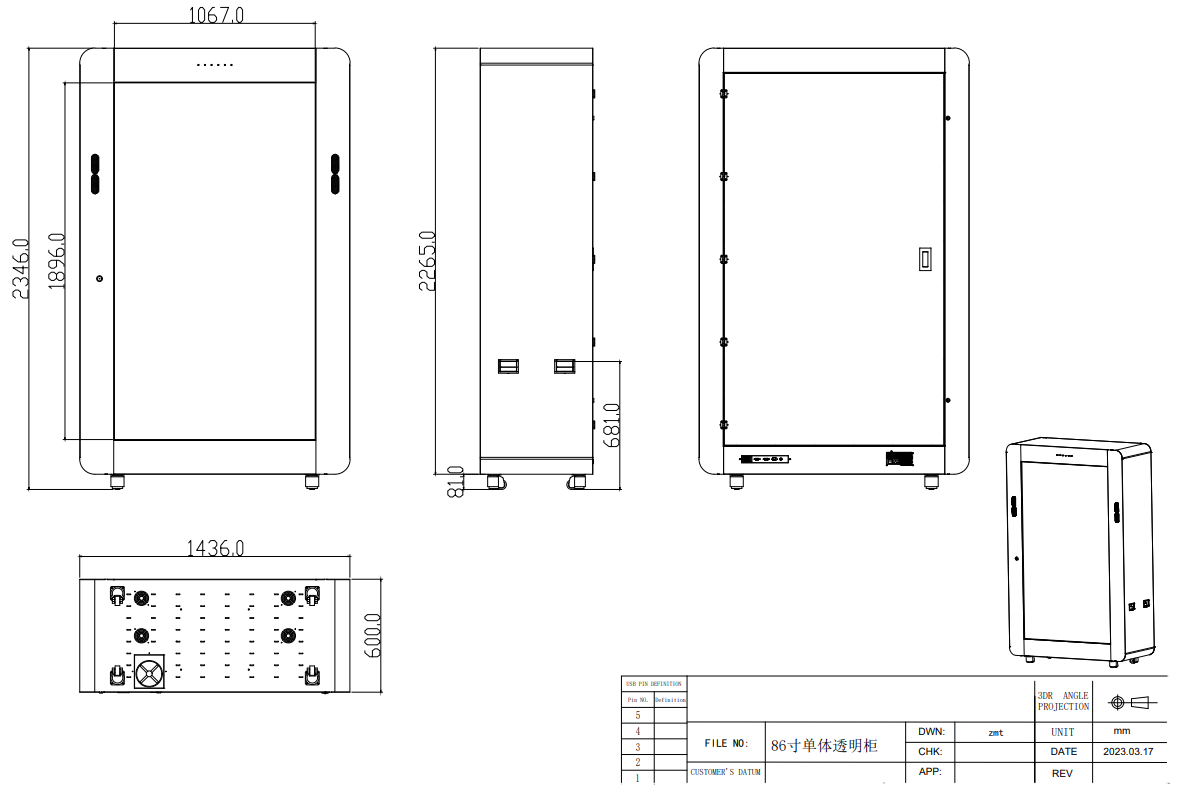

IV. Product Dimensions:
Key words:- 全息3D
- 3D透明
- LCD透明柜
- 透明柜
- 全息透明柜
- 86寸透明柜
- 55寸透明柜
- 43寸透明柜
- 32寸透明柜
- 22寸透明柜
-
New Transparent LCD Screen Display Case - Customizable Size and Shape
Transparent LCD display cabinets, also known as transparent display cabinets, are high-tech products integrating microelectronics technology, computer technology, optoelectronic technology, and information processing technology. They mainly consist of a transparent display screen with an LCD module, an adapter power supply, and a playback box integrating a drive module and a power module. Transparent LCD display cabinets offer significantly improved image quality, avoiding the loss of brightness and clarity that occurs when light is reflected to form an image. They form images directly without relying on the principle of light reflection.
Advantages of Transparent LCD Display Cabinets
1. Creates a more perfect and harmonious display effect, presenting vivid and realistic visual effects. It displays Products while simultaneously showing dynamic playback content.
2. Represents a leap forward in display technology, driving the development of the advertising, automotive, and large-screen projection display industries, and ultimately achieving industrialization to serve the public and create sustained social benefits.
3. Significantly improved image quality, avoiding the loss of brightness and clarity that occurs when light is reflected to form an image. Images are formed directly without relying on the principle of light reflection.
4. Features a simple and stylish appearance. It disseminates information through media, while simultaneously displaying physical Products, releasing information, and interacting with customer feedback in a timely manner.
Application Range
Transparent screen interactive devices are currently available in various Sizes and Specifications, including 32-inch, 42-inch, 46-inch, 50-inch, 55-inch, 65-inch, 75-inch, 86-inch, and 98-inch screens. They are ideal for shopping malls to display jewelry and other high-end goods, and for museums to showcase artifacts, Products, and equipment.
